Korea
KC 3 plug
Model：HTD-30
Current Rating：16A 250V

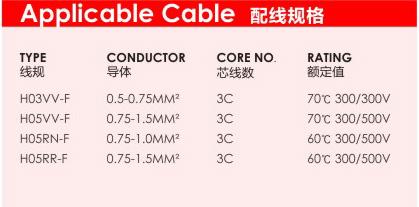

Cable Type：H03VV-F 3×0.5-0.75mm² H05VV-F 3×0.75-1.5mm² H05RR-F 3×0.75-1.5mm² H05RN-F 3×0.75-1.0mm²
Type：Korea
- Introduction

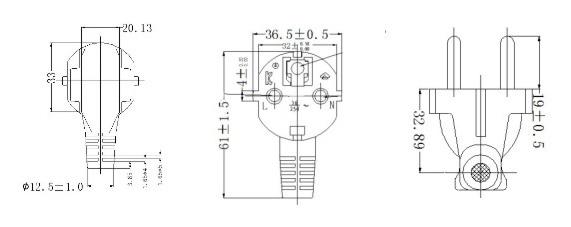

- Plan
- Specification
- Related Products
The plug type of Korea is quite similar to that of Germany VDE and Indonesia SNI power line plug. The two plug includes European plug and tool plug, and three is inserted into pipe plug, also called French plug and French head. The specific parameters of the product are as follows:
1, inside the eight word insert, 2.5A, also called the European insert (two insert).
2, tool insert, 16A/220V, also called the Holland head (two inserts).
3, pipe plug, 16A/250V, also called the French insert (with ground, that is, three inserts).
Note: there are 2 types of tri - inserts, one is complete like the form of a pipe, and the other is not bent (straight). The terminal standards are consistent.
